SilverStone presenta il suo nuovo dissipatore

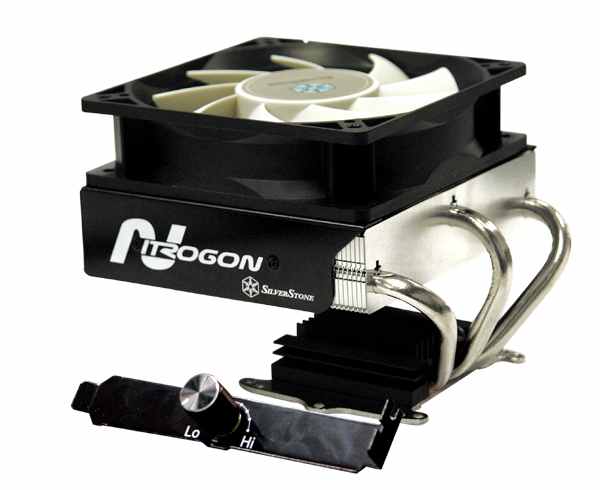

The Nitrogon NT06 was designed and created with one single purpose, to cool the hottest CPUs in the world. To achieve this goal, the original Nitrogon NT01 was brought back onto the drawing board and modified with more than twice the surface area to significantly increase heat-absorbing performance. A new “FM122” 120 x 32mm fan with powerful air pressure rating is then used to provide forced-air heat dissipation with the ability to cool components around the CPU area. Careful planning and bending of the thick sintered powder heat pipes ensures that the NT06 can fit on almost any motherboard and in most cases. For all out CPU cooling performance without compatibility problems, the Nitrogon NT06 is truly the ultimate solution.
Special features:
Massive surface area
Powerful FM122 120 x 32mm fan included
Superior powder heat pipe design
P4 Socket 478, LGA775, and Athlon 64 compatible
For use with Pentium XE 3.46GHz / Athlon 64FX-60 & above
NT06 heatsink
Material |
Copper base w/ bonded aluminum lower fins |
Heat Pipe Type |
8mm thick powder heat pipe |
Color |
Black fan shroud, copper colored cooler |
Application |
P4 Socket 478, LGA775, AMD Socket 754, 939, 940 |
Cooling System |
Advanced two way cooling design |
Net weight |
570 g |
Dimension |
125.4mm (W) x 78mm (H) x 148mm (D) |
Dimension w/ fan |
125.4mm (W) x 111mm (H) x 148mm (D) |
FM122 cooling fan
Fan speed |
800 ~ 2400rpm |
Max airflow |
107.13CFM |
Max air pressure |
5.89mm H2O |
Noise |
21.0dBA ~ 42.2dBA |
Fan blade size |
120 x 120 x 32mm |
Bearing |
dual ball |
Control system |
3.5” aluminum bay fan controller |
